The Tilly Foster Mine
Scientific American - New York, June
15, 1889
Illustrations 1. REOPENING
THE TILLY FOSTER MINE, NEAR BREWSTERS, N.Y.
2. ENGINES, AIR COMPRESSORS, AND HOISTING
PLANT
For nearly two years past a most interesting
piece of engineering work has been progressing in the reopening
of the Tilly Foster iron mine, near Brewsters Station, Putnam
County, about fifty miles from New York City on the line of the
New York and Harlem Railroad. The mine is owned by the Lackawanna
Iron and Coal Company, and its ores have long been considered
very valuable, having been principally used at Scranton and Bethlehem,
Pa, in the production of Bessemer pig. The expense of getting
out the ore, however, has been great, owing to the irregular and
nearly vertical overlying strata, and the production has steadily
declined, the stratification necessitating the leaving of large
quantities of ore in position in the pillars and roofs. An attempt
was made to use concrete pillars, but these artificial supports
were found to be too liable to crush and their use was abandoned.
All other plans having failed, it was finally determined to adopt
the bold scheme represented in our illustration which is nothing
less than the entire removal of the whole of the overhanging rock,
thus making the mine an open cut. The work was commenced in June,
1887, and up to March of this year 230,000 cubic yards of material
had been removed. The excavation is now about 450 feet long, 300
feet wide at the widest part on top, and 170 feet deep. Of the
material thus far taken out, there have
been some 15,000 cubic yards of rock in which ore was mixed The
total contemplated rock excavation amounts to 350,000 cubic yards,
in order to secure an estimated quantity of 1,000,000 tons of
ore. The contract price for the rock excavation was $1.15 per
cubic yard, the taking out of the ore and separating it from the

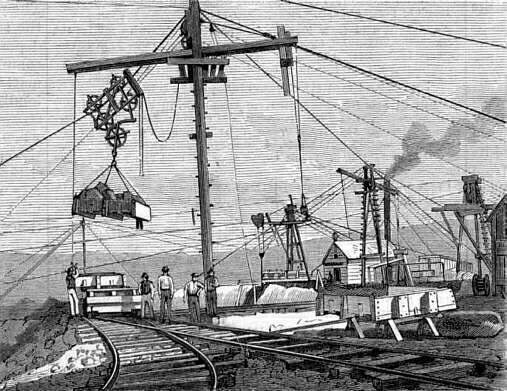

rock being paid for at a higher figure. One thousand tons of material
are handled every ten hours, through the aid of a series of wires
stretched across the pit.
